Description

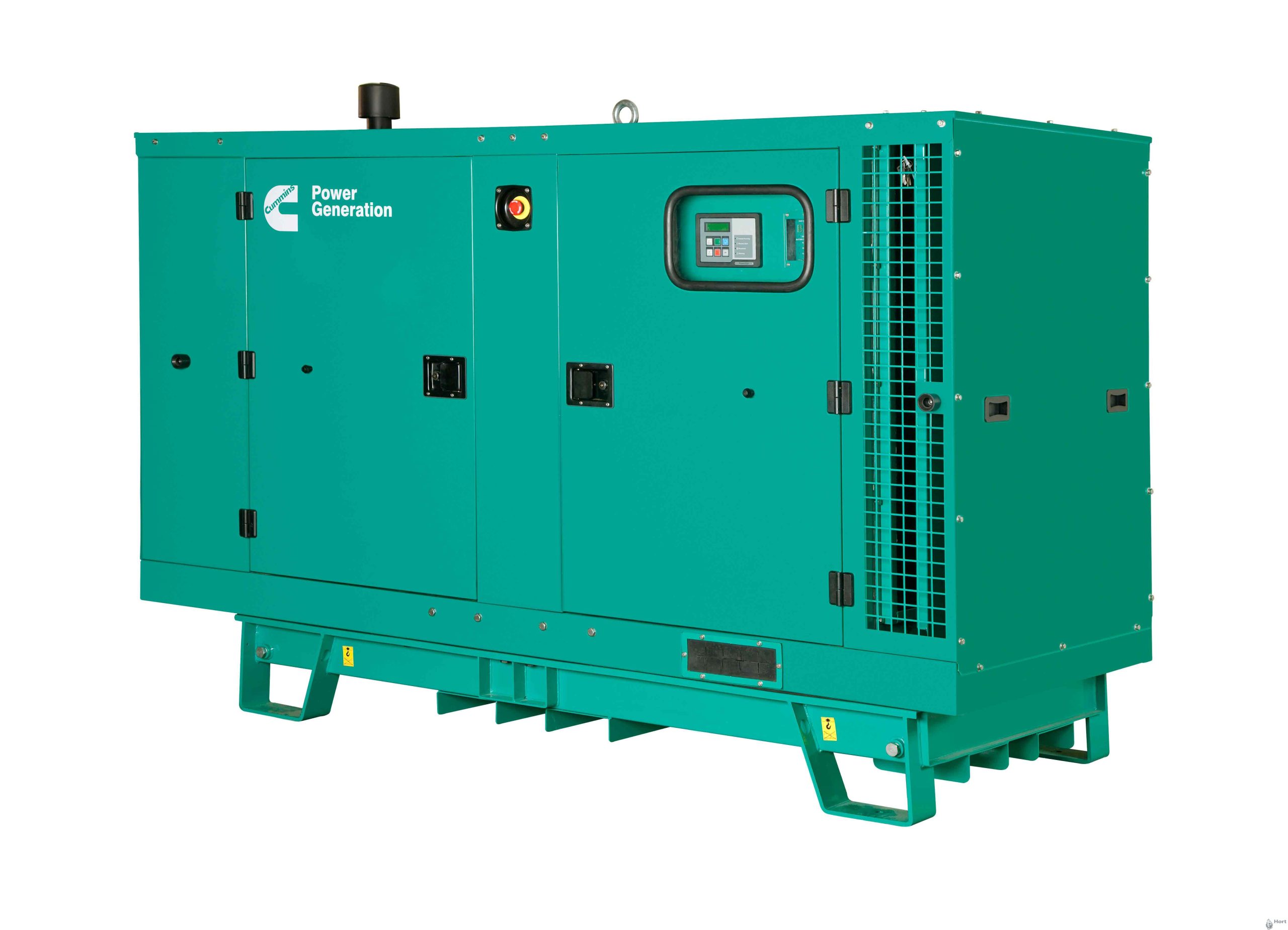

Cummins C110D5 Diesel Generator
Introducing our top-of-the-line Cummins C110D5 Diesel Generator, a powerful 110 kVA Three Phase Auto Start 50Hz Silent Diesel Generator. Engineered with precision and reliability in mind, it boasts the renowned Cummins 6BTA5.9-G5 engine and a Stamford UCI274C alternator.
Backed by nearly a century of engineering prowess, Cummins generators are crafted with rigorous testing to ensure seamless power solutions for standby, prime, and continuous operations. The C110D5 features a turbocharged, water to air after-cooled four-stroke diesel engine, paired with a cast iron, in-line, 6-cylinder configuration and a revolving magnetic field alternator. Plus, with AmpSentry short circuit protection and the PowerCommand 1.1 control system, you’re guaranteed peace of mind.
Invest in this powerhouse with confidence, knowing it’s built to exceed your expectations for quality and reliability.
Whether you’re set on Cummins or still exploring your options, our knowledgeable experts are here to guide you through the process. Contact us today by phone or email for personalized assistance tailored to your power generation needs.
Generator is supplied Ex-Works Dundonald Ayrshire. Delivery Can be arranged. Contact 0333 358 5000 or mail info@gwfgenerators.co.uk
Full Spec.
Model: C110 D5 (6B)
Frequency: 50
Fuel type: Diesel
Spec sheet: SS28-CPGK
Noise data sheet (open/enclosed): ND50-CS550
Airflow data sheet: AF50-550
Derate data sheet (open/enclosed): TBD
Transient data sheet: TD50-550
Fuel consumption
Standby Prime
kVA (kW) kVA (kW)
Ratings 110 (88) 100 (80)
Load 1/4 1/2 3/4 Full 1/4 1/2 3/4 Full
gph 1.6 2.8 4.3 6.0 1.5 2.6 4.0 5.4
L/hr 7.4 12.9 19.4 27.2 6.8 12.0 18.0 24.7
Engine Standby rating Prime rating
Engine manufacturer Cummins
Engine model 6BTA5.9 G5
Configuration Inline 6-Cylinder diesel
Aspiration Turbocharged and after-cooled
Gross engine power output, kWm 102 93
BMEP at set rated load, kPa 1386 1265
Bore, mm 102
Stroke, mm 120
Rated speed, rpm 1500
Piston speed, m/s 6
Compression ratio 17.6:1
Lube oil capacity, L 16.4
Overspeed limit, rpm 1800
Regenerative power, kW 8
Governor type Electronic
Starting voltage 12 Volts DC
Fuel flow
Maximum fuel flow, L/hr 45
Maximum fuel inlet restriction, mm Hg 8
Maximum fuel inlet temperature, (°C) 71
power.cummins.com
©2017 Cummins Inc. | DS381-CPGK (09/19)
Air Standby rating Prime rating
Combustion air, m3
/min 7.86 7.2
Maximum air cleaner restriction, kPa 6
Exhaust
Exhaust gas flow at set rated load, m3
/min 21.4 19.5
Exhaust gas temperature, °C 540 533
Maximum exhaust back pressure, kPa 10.5
Standard set-mounted radiator cooling
Ambient design, °C 54
Fan load, kWm 5.60992
Coolant capacity (with radiator), L 19.75
Cooling system air flow, m3
/sec @ 12.7mm H2O 3.44
Total heat rejection, BTU/min 9259 8419
Maximum cooling air flow static restriction, mm H2O 12.7
Weights* Open Enclosed
Unit dry weight, kgs 1263 1963
Unit wet weight, kgs 1574 2274
* Weights represent a set with standard features. See outline drawing for weights of other configurations.
Dimensions Length Width Height
Standard open set dimensions 2268 1094 1576
Enclosed set standard dimensions 3151 1142 1714
Genset outline
Open set
Enclosed set
Outlines are for illustrative purposes only. Please refer to the genset outline drawing for an exact representation of this model.
For more information contact your local Cummins distributor
or visit power.cummins.com
©2017 Cummins Inc. All rights reserved. Cummins is a registered trademark of Cummins Inc. PowerCommand, AmpSentry, InPower and “Our energy working for you.” are trademarks of
Cummins Inc. Other company, product, or service names may be trademarks or service marks of others. Specifications are subject to change without notice.
Cummins Generator Sets | Fully Integrated Power
Price is ex works Dundonald. Haulage can be arranged at a cost via Heavy Haulage | Gwf Heavy Haulage | Dundonald
