Description

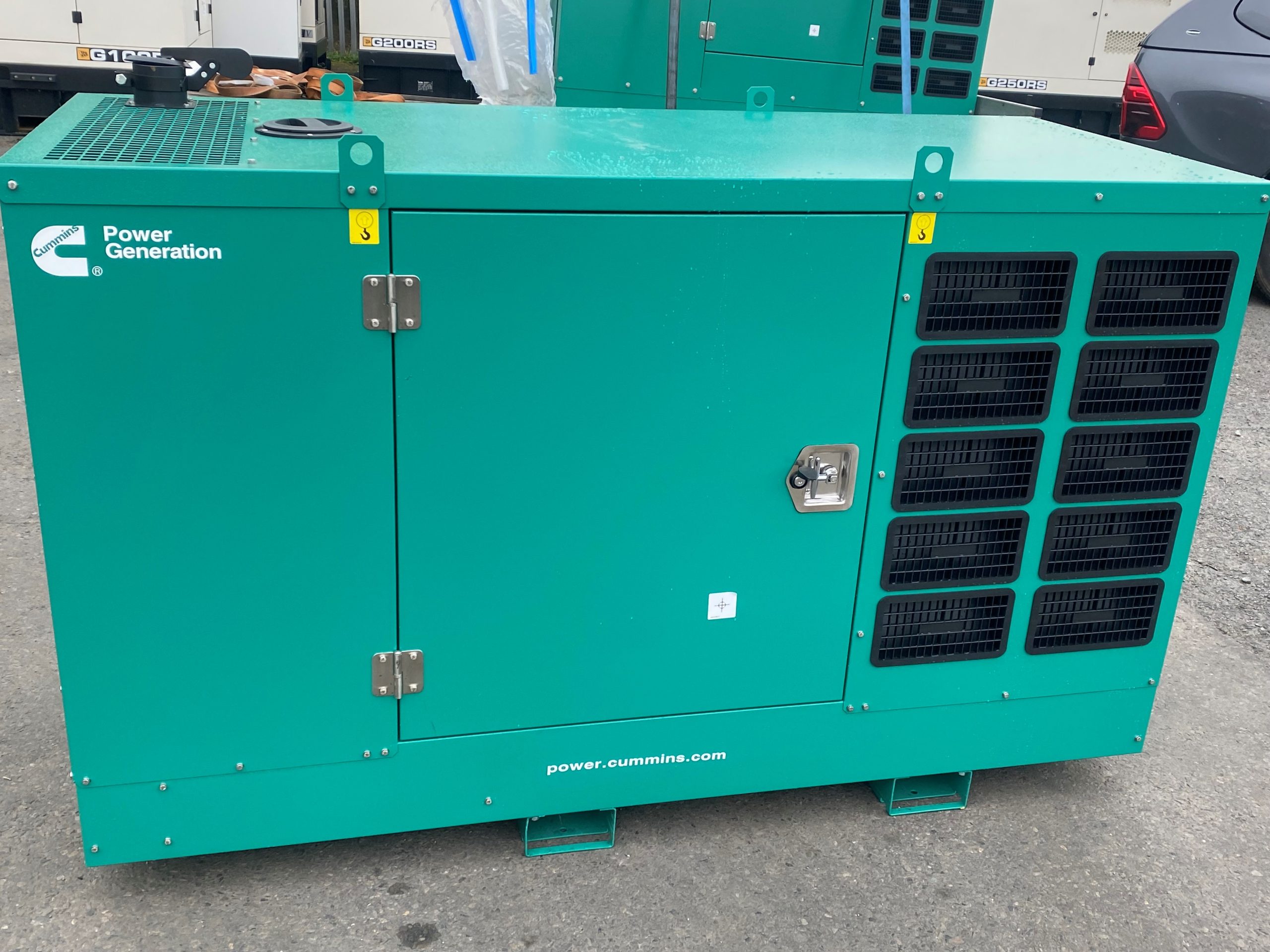

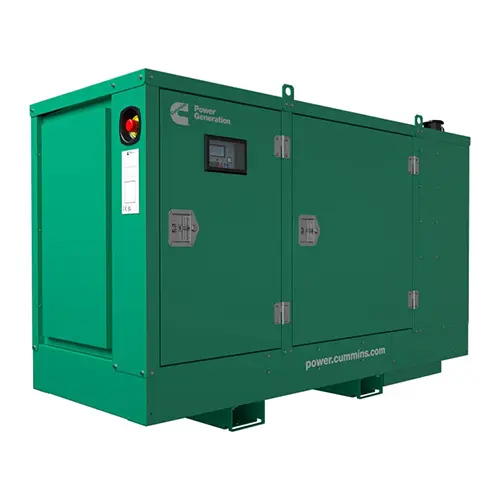

Cummins C22D5Q Diesel Generator

Price Shown Includes VAT

Price Quoted is ex-works – Dundonald Ayrshire – Please call 0333 358 5000 or mail info@gwfgenerators.co.uk if delivery is required and we will provide a quote.

DESCRIPTION
This Cummins® commercial generator set is a fully
integrated power generation system, providing
optimum performance, reliability, and versatility for
Stationary Standby and Prime Power applications.

STANDARD FEATURES

Cummins engine – Rugged 4 cycle industrial diesel

delivers reliable power, and fast response to load
changes.
Alternator – Stamford S series self-excited alternator.
Optional Auxiliary Winding is also available.
Cooling system – Integral set-mounted radiator
system, designed and tested for rated ambient
temperatures simplifies facility design requirements
for rejected heat.
Control system – PowerStart control,
microprocessor-based generator set monitoring and
control system.
Open and enclosed genset versions available.
Warranty – Backed by a comprehensive warranty and
wide distributor and dealer network.
Coolant heater – The engine is fitted as standard with
coolant heater 230 V to ensure engine start during low
ambient temperatures by circulating warmed coolant
through the engine.
Enhanced battery system – Including a flooded/SLI
technology battery, charger and disconnector as
standard.

GENERAL DATA
Cummins C22D5Q diesel generator set
ENGINE X2.5-G2
CONTROLLER PS0600
Model Phases Voltage
(V)
Frequency
(Hz)
ESP Power
(kVA/kW)
PRP Power
(kVA/kW)
Current
ESP (A)
ALTERNATOR S0L2-G1 3 400/230 50 22 / 18 20 / 16 31.8
Q RANGE DIESEL GENERATOR C22D5Q
FUEL CONSUMPTION
SPECIFICATIONS
GENERATOR SET SPECIFICATIONS
Governor type Mechanical
Performance class Genset models have been tested in accordance with ISO 8528-5.
Consult factory for transient performance information
Voltage regulation, no load to full load ± 2.5%
Random voltage variation ± 2.5%
Frequency regulation Droop
Random frequency variation ± 0.75 %
Electromagnetic Compatibility Performance Emissions to EN61000-6-3: 2007 + A1: 2011
Immunity to EN61000-6-2: 2005
Coolant Heater 230VAC, 1000W
Fuel tank capacity 55 l
Autonomy @ 75%PRP 13 h
Measured sound power level – Lw(A) (Enclosed) 94 dB(A)*
Sound pressure level – Lp(A) (Enclosed):
@1m
@7m
77 dB(A)
65 dB(A)
* Guaranteed sound power: 96dB(A)
ENGINE SPECIFICATIONS
Standby Rating Prime Rating
Engine manufacturer Cummins
Engine model X2.5-G2
Design 4 cycle, in-line, diesel, naturally aspirated
Displacement, l 2.5
Rated speed, rpm 1500
Lube oil capacity, l
(Standard oil pan/Total system with combo filters)
7.3/8.0
Gross engine power output, kWm 27 24.37
Bore, mm 91.4
Stroke, mm 127
Cylinder block Alloy cast iron, in-line, 3 cylinder
Battery charging alternator, A 36
Starting voltage, VDC 12
Fuel system Direct injection
Fuel filter Spin-on fuel filters with water separator
Air cleaner type Heavy Duty Dry replaceable element with restriction indicator
Lube oil filter type(s) Spin-on full flow filter
Standard cooling system 50 ºC ambient radiator with coolant recovery system
STANDBY (kVA/kW) PRIME (kVA/kW)
RATINGS 22 / 18 20 / 16
LOAD 1/4 1/2 3/4 Full 1/4 1/2 3/4 Full
l/h 2.5 3.4 4.4 5.6 2.5 3.2 4.1 5.2
Q RANGE DIESEL GENERATOR C22D5Q
