Cummins C55D5EQ Diesel Generator – Ex Works Dundonald

Ex-Works – Dundonald, Ayrshire. If delivery is required contact info@gwfgenerators.co.uk or call 0333 358 5000 for quotation.

Delivery can be arranged via www.gwfheavyhaulage.co.uk

DESCRIPTION –

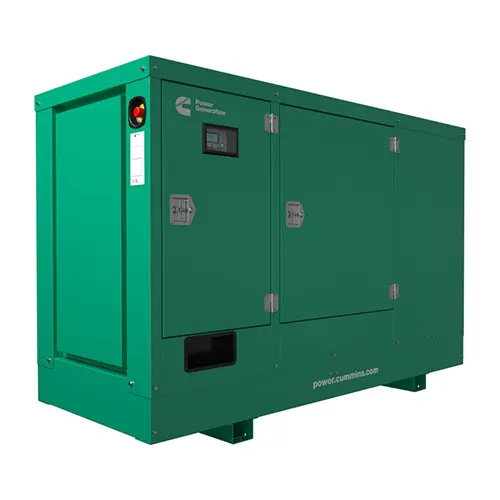

This Cummins C55D5EQ Diesel Generator set is a fully
integrated power generation system, providing
optimum performance, reliability, and versatility for
Stationary Standby and Prime Power applications.

STANDARD FEATURES
Cummins engine – Rugged 4 cycle industrial diesel
delivers reliable power, and fast response to load
changes.
Alternator – Stamford UC series self-excited
alternator. Optional Permanent Magnet Alternator is
also available.
Cooling system – Integral set-mounted radiator
system, designed and tested for rated ambient
temperatures simplifies facility design requirements
for rejected heat.
Control system – PowerStart control,
microprocessor-based generator set monitoring and
control system.
Open and enclosed genset versions available.
Warranty – Backed by a comprehensive warranty and
wide distributor and dealer network.
Coolant heater – The engine is fitted as standard with
coolant heater 230 V to ensure engine start during low
ambient temperatures by circulating warmed coolant
through the engine.
Enhanced battery system – Including a flooded/SLI
technology battery, charger and disconnector as standard.

GENERAL DATA
Cummins C55D5EQ diesel generator set
ENGINE 4BTAA3.3-G14
CONTROLLER PS0600
Model Phases Voltage
(V)
Frequency
(Hz)
ESP Power
(kVA/kW)
PRP Power
(kVA/kW)
Current
ESP (A)
ALTERNATOR UC224D 3 400/230 50 55 / 44 50 / 40 79.5
Q RANGE DIESEL GENERATOR C55D5EQ
FUEL CONSUMPTION
SPECIFICATIONS
GENERATOR SET SPECIFICATIONS
Governor type Mechanical
Performance class Genset models have been tested in accordance with ISO 8528-5.
Consult factory for transient performance information
Voltage regulation, no load to full load ± 0.63%
Random voltage variation ± 0.5%
Frequency regulation 6% Droop
Random frequency variation ± 0.195 %
Electromagnetic Compatibility Performance Emissions to EN61000-6-3: 2007 + A1: 2011
Immunity to EN61000-6-2: 2005
Coolant Heater 230VAC, 1000W
Fuel tank capacity 200 l
Autonomy @ 75%PRP 21 h
Measured sound power level – Lw(A) (Enclosed) 92 dB(A)*
Sound pressure level – Lp(A) (Enclosed):
@1m
@7m
75 dB(A)
64 dB(A)
* Guaranteed sound power: 95dB(A)



For full data sheet visit Cummins Generator Sets | Fully Integrated Power

If you require any more info please feel free to contact us Contact Us – GWF Generators (gwfenergy.co.uk)
