Genmac Queen G100IS 100KVA Diesel Generator

Rental Spec Stage V Machine c/w Load Bank, Socket Pack & 3 Way Fuel Valve

Silent, Durable, and Efficient Power Solution

Overview of the Genmac Queen G100IS

The Genmac Queen G100IS is a high-performance, silent diesel generator designed for reliability and durability. Ideal for both residential and industrial applications, this generator delivers continuous and standby power with minimal noise, making it perfect for noise-sensitive environments.

Key Features of the Genmac Queen G100IS

Silent Operation

• Supersilent Muffler: Integrated residential-type muffler ensures quiet operation.
• Noise Level: Sound pressure at 7 meters is just 68 dBA.

Robust and Durable Frame

• Heavy-Duty Base Plate: Constructed with high-quality steel (UNI S235 JR) for long-lasting strength.
• Anti-Vibration Mountings: Bell-type rubber mountings minimize vibrations and enhance stability.
• Easy Electrical Connection: Dedicated area for simple electrical connections to the load.
• Transport Features: Includes feet and four lifting holes for easy handling and installation.

Weather-Resistant Canopy

• High-Quality Materials: Made from electro-galvanized sheet metal (DC01+ZE25/25), treated to resist corrosion.
• Accessible Maintenance: Large, lockable doors for easy access, with specific hatches for coolant refilling and external fuel filling.
• Durable Finish: RAL 9010 “orange peel” powder coat paint for outdoor durability.

Performance

• PRP Continuous Power: 100 kVA / 80 kW
• LTP Standby Power: 109 kVA / 88 kW
• Power Factor: 0.8
• Ampere PRP/LTP: 144 / 158 A
• Frequency: 50Hz @ 1500 RPM
• Voltage: 400/230V 3-Phase

Dimensions and Weight

• Length: 2950 mm
• Width: 1056 mm
• Height: 1900 mm
• Net Weight: 1501 kg
• Gross Weight: 1536 kg

Engine Details

• Engine Brand: Fpt-Iveco
• Model: NEF45TM2A
• Fuel Type: Diesel
• Number of Cylinders: 4
• Cooling System: Water
• Emissions Compliance: Euro Stage 2
• Fuel Tank Capacity: 270 liters

Fuel Consumption

• At 50% Load: 11.0 l/h
• At 75% Load: 15.2 l/h
• At 100% Load: 22.0 l/h
• Autonomy at 75% Load: ≈ 18 hours

Additional Information

• Compliance: Built to ISO8528-1 standards, ensuring continuous and limited-time running power capabilities.
• Testing: All components are prototype tested, factory built, and production tested to guarantee long life and reliability.

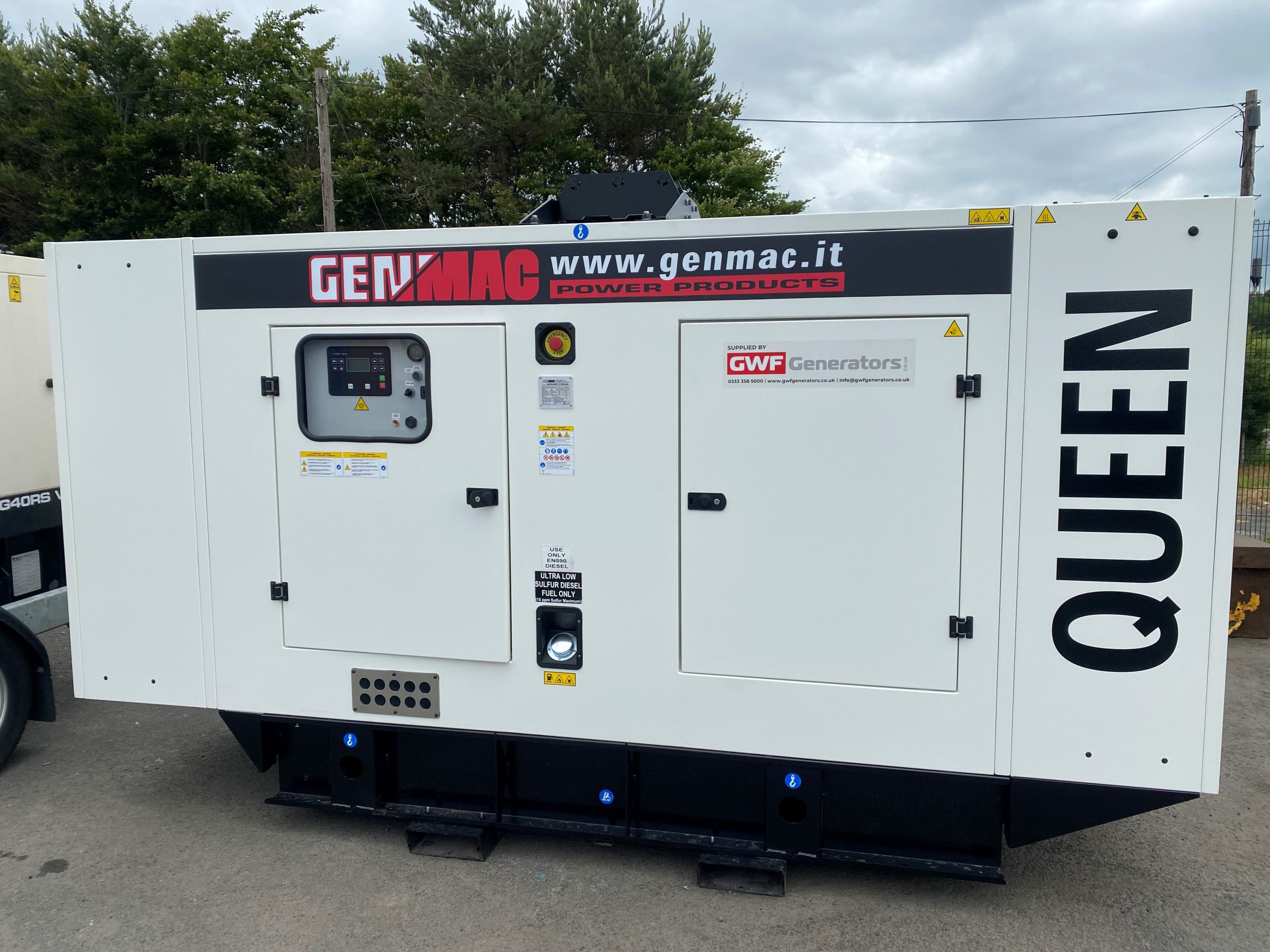

• Note: Picture for illustration purposes only.
